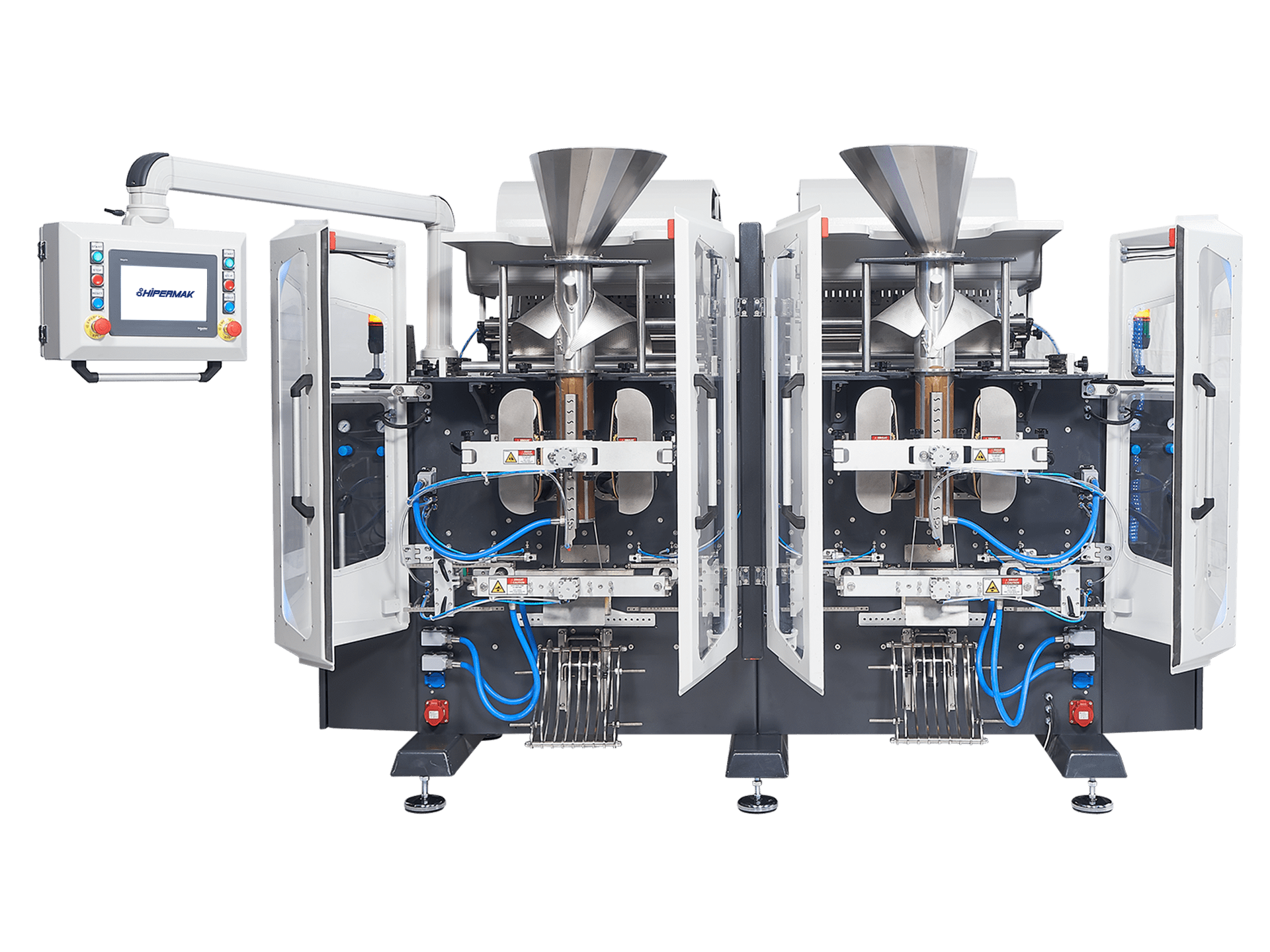

CORDIA620_QA_TWIN - Hipermak

CORDIA620_QA_TWIN

MAXIMUM BAG WIDTH: 300MM
MAXIMUM BAG/MINUTE: 200 PCS

Cordia620_QA_TWIN Series Vertical Vertical Packaging Machines suitable for almost all kind of food and non-food sectors

Cordia620_QA_TWIN Series Bag Makers allows to pack wide range of goods and bag sizes

Remote Access, Centralized Lubrication, Easy New Film Adding System, Automatic Centering System are standard functions for Hipermak Cordia620_QA_TWIN Series Baggers.

You can keep your special tastes and smells of your products with Hipermak VFFS Machines.

Special applications of marketing strategies like Euro Slot, Nitrogen Flushing System , Valve Applicator, easy open are optional functions of Hipermak Packaging Machines.



Remote Access
Centralized Lubrication
Temperature Control with PID
Machine Error / Alarm History
Able to work with or without Photocell
Constant Film Tension with Balance Arm
Maximum access for clean and maintenance
Electorostatic Powdered Painted Body in Multi-Stage
Dynamic Touch Screen (180° Around Machine – 360° Own Axis)
Production Control with Bag Counter and Target Bag Quantity
Automatic Edge Control and Film Centering System with Ultrasonic Sensors
Highly suitable for all kind of Filling Units (Weigher, Auger, Volumetric)
Fast, Precise and Stable Packaging Process with Motion Control Servo Technology

Capacity 200 Pcs / Min Maximum Servo Motor Allen Bradley ( USA )
Bag Dimensions H: 50mm – 450mm – W: 40mm – 300mm Touch Screen Allen Bradley ( USA )
Bobbin Inner Ø 76 mm Pneumatic Equip. Festo ( German )
Bobbin Outer Ø 400 mm Electronic Parts Schneider ( German )
Max. Bobbin Width 620 mm Sensor Sick ( German )
Voltage 380V/415V – 3 Faz – 50Hz/60 Hz Bearing SKF ( Sweden )
Power 9 kW AC Motor Bonfiglioli ( Italy )
Voltage Range ± 5 % Reductor Bonfiglioli ( Italy )
Air Requirement  6 – 8 Bar ( 100 Liter / Min ) Edge Control Microsonic ( German )
Fitting Parts DIN 933/931 A2 AISI304 AA-70 Color 7016 / 7035
Weight 2500 KG Noise Level DB < 70





Dust Absorber
Label Applicator
Valve Applicator
Anti-static Devices
Online Oxygen Analyzer
Gift Card Throw System
Vacuum Timing Belts System
Gusseted Bag Forming System
Nitrogen Gas Flushing System
Hole punch & Euro hole devices
Sealing Jaw System for PE, LDPE
Programmable Centralized Lubrication
Advertisement Stripe / Promotion Band System

Feeding Elevator
Feeding Helezone
Rotary Table
Check Weigher
Metal Dedector
X-Ray Machine
Thermal Transfer Printer
